Floating Panel for Ark UI

Q: How do I control the size of a Floating Panel?

Pass width and height on size when state should own the rect, and write the next size back from the resize callback. Use defaultSize when you only need a start, as in Usage, which starts at a width of 360 and a height of 300. minSize and maxSize clamp the drag. onSizeChange receives details.size, with width and height.

Q: How do I open a Floating Panel from state in React?

Pass the boolean back as open when a parent should show or hide the panel. Leave open unset for an uncontrolled panel, and use defaultOpen for the first state only. Closed content unmounts, so set lazyMount and unmountOnExit to false when form fields must stay mounted. onOpenChange receives details.open.

Q: Does Escape close a Floating Panel?

No, Escape leaves a Floating Panel open unless you set closeOnEscape. The Accessibility section lists the keys that do apply: arrows move the panel, and Home and End jump. The panel is portaled and uses z-50, so overflow on a parent does not clip it. Set resizable to false on FloatingPanelContent to drop the edge handles.

Q: How do I change the spacing inside a Floating Panel?

Padding comes from the --space variable on the content. Header, body, and footer all read it, so change --space on FloatingPanelContent once, as the Custom Spacing demo does, instead of padding each part. The positioner places the window with --x, --y, --width, and --height.

A window you can drag, resize, and minimize while the page underneath stays usable. For React with Ark UI, when a modal would block the work under it.

A small window over the page. You can drag the header, resize from the edges, and minimize it without blocking the page.

Use it when a tool should stay beside the work. A task that has to finish before anything else is a Dialog. In React, Ark UI portals the window and remembers its position and size.

PreviewCode

Installation

Free with an account. It carries your token, so the CLI installs everything in one go.

Google GitHub

Use email insteadNo credit card

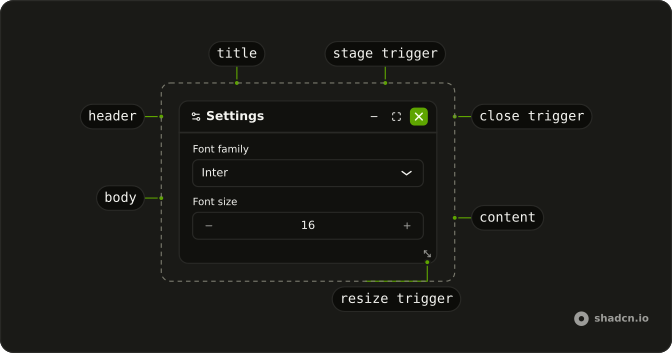

Anatomy

FloatingPanelTrigger
FloatingPanelContent
└── FloatingPanelContent
FloatingPanelHeader
FloatingPanelBody
FloatingPanelTitle
FloatingPanelResizeTrigger
FloatingPanelDragTrigger
FloatingPanelStageTrigger
FloatingPanelCloseTrigger
FloatingPanelControl

Usage

import { createListCollection } from "@ark-ui/react/collection";
import { Settings2Icon, XIcon } from "lucide-react";
import { Button } from "@/components/ui/button";
import { Field, FieldLabel } from "@/components/ui/field";
import {
  FloatingPanel, FloatingPanelBody, FloatingPanelCloseTrigger,
  FloatingPanelContent, FloatingPanelControl, FloatingPanelFooter,
  FloatingPanelHeader, FloatingPanelMaximize, FloatingPanelMinimize,
  FloatingPanelRestore, FloatingPanelTitle, FloatingPanelTrigger,
} from "@/components/ui/floating-panel";
import {
  NumberInput, NumberInputDecrement, NumberInputGroup,
  NumberInputIncrement, NumberInputInput,
} from "@/components/ui/number-input";
import {
  Select, SelectContent, SelectItem, SelectTrigger, SelectValue,
} from "@/components/ui/select";

const FloatingPanelDemo = () => (
  <FloatingPanel defaultSize={{ width: 360, height: 300 }}>
    <FloatingPanelTrigger asChild>
      <Button variant="outline">Open</Button>
    </FloatingPanelTrigger>
    <FloatingPanelContent>
      <FloatingPanelHeader>
        <Settings2Icon />
        <FloatingPanelTitle>Settings</FloatingPanelTitle>
        <FloatingPanelControl>
          <FloatingPanelMinimize />
          <FloatingPanelMaximize />
          <FloatingPanelRestore />
          <FloatingPanelCloseTrigger asChild>
            <Button aria-label="Close" size="icon-xs">
              <XIcon aria-hidden />
            </Button>
          </FloatingPanelCloseTrigger>
        </FloatingPanelControl>
      </FloatingPanelHeader>
      <FloatingPanelBody>
        <Field>
          <FieldLabel>Font family</FieldLabel>
          <Select collection={collection} defaultValue={["Inter"]}>
            <SelectTrigger className="w-full">
              <SelectValue />
            </SelectTrigger>
            <SelectContent>
              {collection.items.map((item) => (
                <SelectItem item={item} key={item}>
                  {item}
                </SelectItem>
              ))}
            </SelectContent>
          </Select>
        </Field>
        <Field>
          <FieldLabel>Font size</FieldLabel>
          <NumberInput className="w-full" defaultValue="16">
            <NumberInputGroup>
              <NumberInputDecrement />
              <NumberInputInput />
              <NumberInputIncrement />
            </NumberInputGroup>
          </NumberInput>
        </Field>
      </FloatingPanelBody>
      <FloatingPanelFooter>
        <Button variant="outline">Save</Button>
      </FloatingPanelFooter>
    </FloatingPanelContent>
  </FloatingPanel>
);

const collection = createListCollection({
  items: ["Inter", "Roboto", "Helvetica", "Geist"],
});

Accessibility

Enter: Activate the focused control.
Space: Activate the focused control.
Arrow Left: Move left.
Arrow Right: Move right.
Arrow Up: Move up.
Arrow Down: Move down.
Home: Go to the start.
End: Go to the end.

Demos

Controlled Position

position is in state, and the arrow buttons nudge it by 20 on each axis. Dragging the header writes the same state, so the readout and the window agree. Control position when something outside moves the panel, or when you show the coordinates. Omit position when the panel should track a drag itself, and expect a blank readout until the first move.

PreviewCode

Controlled Size

size starts at a width of 360 and a height of 200. Shrink and Grow change it, and dragging an edge writes back through the size callback. Control size when a button must set the rect, not only the pointer. defaultSize is enough when you only care about the opening box, and nothing here sets minSize or maxSize, so the buttons can push it quite small.

PreviewCode

Custom Spacing

The --space variable on FloatingPanelContent is the padding shared by the header, the body, and the footer. This one tightens it on a narrow screen and loosens it from the small breakpoint up. Change the variable once, because padding each part yourself fights that layout. It does not move the window or change its size.

PreviewCode

FAQ

How do I control a Floating Panel's position in React?

Keep the position in state and pass it back so a drag and your own buttons stay in sync. Omit it when the panel should track position itself, and use defaultPosition only for the starting point. Set persistRect to keep that rect after the panel closes. onPositionChange receives details.position, with x and y, and you pass that object as position.

How do I control the size of a Floating Panel?

Pass width and height on size when state should own the rect, and write the next size back from the resize callback. Use defaultSize when you only need a start, as in Usage, which starts at a width of 360 and a height of 300. minSize and maxSize clamp the drag. onSizeChange receives details.size, with width and height.

How do I open a Floating Panel from state in React?

Pass the boolean back as open when a parent should show or hide the panel. Leave open unset for an uncontrolled panel, and use defaultOpen for the first state only. Closed content unmounts, so set lazyMount and unmountOnExit to false when form fields must stay mounted. onOpenChange receives details.open.

How do I minimize or maximize a Floating Panel?

Use FloatingPanelMinimize, FloatingPanelMaximize, and FloatingPanelRestore in the header. They switch the stage among minimized, maximized, and default, and the restore icon follows the current stage. The content exposes data-minimized and data-maximized for styling. Dragging uses the header, which is the drag handle, unless you set draggable to false.

Does Escape close a Floating Panel?

No, Escape leaves a Floating Panel open unless you set closeOnEscape. The Accessibility section lists the keys that do apply: arrows move the panel, and Home and End jump. The panel is portaled and uses z-50, so overflow on a parent does not clip it. Set resizable to false on FloatingPanelContent to drop the edge handles.

How do I change the spacing inside a Floating Panel?

Padding comes from the --space variable on the content. Header, body, and footer all read it, so change --space on FloatingPanelContent once, as the Custom Spacing demo does, instead of padding each part. The positioner places the window with --x, --y, --width, and --height.

When should I use a Floating Panel instead of a Dialog?

Use a Floating Panel when the window should stay available while people drag, resize, or minimize it. Use a Dialog when the task should block the page until it is dismissed. Use a Popover for a small anchored surface, and a Sheet when a small screen needs an edge panel instead of a free window.

How do I install Floating Panel in React?

Run the command in the Installation section above. It adds Floating Panel to your ui folder, including the trigger, content, header, body, footer, and the stage and close controls. Install from that section rather than pasting a partial tree, so the parts and their dependencies stay together. The command uses the shadcn CLI.

API Reference

FloatingPanel

data-slot="floating-panel"

PropType

open?boolean

The controlled open state of the panel.

defaultOpen?boolean

The initial open state of the panel when rendered. Use when you don't need to control the open state of the panel.

Default: false

onOpenChange?(details: OpenChangeDetails) → void

Function called when the panel is opened or closed.

Type: (details: OpenChangeDetails) → void
Parameters: details – { open: boolean }
Returns: void

position?object

The controlled position of the panel.

Type: { x: number; y: number }

defaultPosition?object

The initial position of the panel when rendered. Use when you don't need to control the position of the panel.

Type: { x: number; y: number }

onPositionChange?(details: PositionChangeDetails) → void

Function called when the position of the panel changes via dragging.

Type: (details: PositionChangeDetails) → void
Parameters: details – { position: Point }
Returns: void

size?object

The size of the panel.

Type: { width: number; height: number }

defaultSize?object

The default size of the panel.

Type: { width: number; height: number }

onSizeChange?(details: SizeChangeDetails) → void

Function called when the size of the panel changes via resizing.

Type: (details: SizeChangeDetails) → void
Parameters: details – { size: Size }
Returns: void

allowOverflow?boolean

Whether the panel should be strictly contained within the boundary when dragging. Ark default: true.

Default: !inPreview

closeOnEscape?boolean

Whether the panel should close when the escape key is pressed.

dir?"ltr" | "rtl"

The document's text/writing direction.

Type: "ltr" | "rtl"
Default: "ltr"

disabled?boolean

Whether the panel is disabled.

draggable?boolean

Whether the panel is draggable.

Default: true

finalFocusEl?() → HTMLElement | null

Element to receive focus when the panel is closed. By default, the trigger element is focused.

Type: () → HTMLElement | null
Returns: HTMLElement | null

getAnchorPosition?(details: AnchorPositionDetails) → Point

Function that returns the initial position of the panel when it is opened. If provided, will be used instead of the default position.

Type: (details: AnchorPositionDetails) → Point
Parameters: details – { triggerRect: DOMRect | null; boundaryRect: DOMRect | null }
Returns: Point

getBoundaryEl?() → HTMLElement | null

The boundary of the panel. Useful for recalculating the boundary rect when the it is resized.

Type: () → HTMLElement | null
Returns: HTMLElement | null

gridSize?number

The snap grid for the panel.

Default: 1

hideMode?"display-none" | "activity"

How to hide content when mounted but not present. - display-none: HTML hidden attribute. Effects stay alive. - activity: React 19 <Activity mode="hidden">. Effects pause. Requires React 19+.

Type: "display-none" | "activity"
Default: "display-none"

id?string

The unique identifier of the machine.

ids?object

The ids of the elements in the floating panel. Useful for composition.

Type: { trigger?: string; positioner?: string; content?: string; title?: string; header?: string }

initialFocusEl?() → HTMLElement | null | false

Element to receive focus when the panel is opened. Defaults to the panel content. Return false to skip moving focus, or null to use the default.

Type: () → HTMLElement | null | false
Returns: HTMLElement | null | false

lazyMount?boolean

Whether to enable lazy mounting. Ark default: false.

Default: true

lockAspectRatio?boolean

Whether the panel is locked to its aspect ratio.

maxSize?object

The maximum size of the panel.

Type: { width: number; height: number }

minSize?object

The minimum size of the panel.

Type: { width: number; height: number }

onPositionChangeEnd?(details: PositionChangeDetails) → void

Function called when the position of the panel changes via dragging ends.

Type: (details: PositionChangeDetails) → void
Parameters: details – { position: Point }
Returns: void

onSizeChangeEnd?(details: SizeChangeDetails) → void

Function called when the size of the panel changes via resizing ends.

Type: (details: SizeChangeDetails) → void
Parameters: details – { size: Size }
Returns: void

onStageChange?(details: StageChangeDetails) → void

Function called when the stage of the panel changes.

Type: (details: StageChangeDetails) → void
Parameters: details – { stage: Stage }
Returns: void

persistRect?boolean

Whether the panel size and position should be preserved when it is closed.

resizable?boolean

Whether the panel is resizable.

Default: true

restoreFocus?boolean

Whether to restore focus to the trigger when the panel is closed.

Default: true

skipAnimationOnMount?boolean

Whether to allow the initial presence animation.

Default: false

strategy?"absolute" | "fixed"

The strategy to use for positioning.

Type: "absolute" | "fixed"
Default: "fixed"

translations?object

The translations for the floating panel.

Type: { minimize?: string; maximize?: string; restore?: string }

unmountOnExit?boolean

Whether to unmount on exit. Ark default: false.

Default: true

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

FloatingPanelTrigger

<button> data-slot="floating-panel-trigger"

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

AttributeType

data-dragging?string

Present when in the dragging state.

data-state"open" | "closed"

"open" or "closed".

Type: "open" | "closed"

FloatingPanelPositioner

<div> data-slot="floating-panel-positioner"

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

CSS variableType

--heightstring

The height of the element.

--widthstring

The width of the element.

--xstring

The x position for transform.

--ystring

The y position for transform.

--z-indexstring

The z-index value.

FloatingPanelContent

<div> data-slot="floating-panel-content"

PropType

resizable?boolean

Enable resizable panel.

Default: true

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

AttributeType

data-behind?string

Present when not topmost.

data-dragging?string

Present when in the dragging state.

data-maximized?string

Present when maximized.

data-minimized?string

Present when minimized.

data-staged?string

Present when not in default stage.

data-state"open" | "closed"

"open" or "closed".

Type: "open" | "closed"

data-topmost?string

Present when topmost.

CSS variableType

--heightstring

The measured height, for animating open and closed.

--widthstring

The measured width, for animating open and closed.

--xstring

The horizontal position.

--ystring

The vertical position.

FloatingPanelHeader

<div>

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

AttributeType

data-behind?string

Present when not topmost.

data-dragging?string

Present when in the dragging state.

data-maximized?string

Present when maximized.

data-minimized?string

Present when minimized.

data-staged?string

Present when not in default stage.

data-topmost?string

Present when topmost.

CSS variableType

--spacestring

FloatingPanelBody

<div> data-slot="floating-panel-body"

PropType

scrollFade?boolean

Add a fade effect to the scroll area.

Default: false

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

AttributeType

data-dragging?string

Present when in the dragging state.

data-maximized?string

Present when maximized.

data-minimized?string

Present when minimized.

data-staged?string

Present when not in default stage.

CSS variableType

--spacestring

FloatingPanelTitle

<h2> data-slot="floating-panel-title"

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

FloatingPanelResizeTrigger

<div> data-slot="floating-panel-resize-trigger"

PropType

axis"s" | "w" | "e" | "n" | "sw" | "nw" | "se" | "ne"

The axis of the resize handle.

Type: "s" | "w" | "e" | "n" | "sw" | "nw" | "se" | "ne"

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

AttributeType

data-axisstring

Mirrors the axis prop.

data-disabled?string

Present when disabled.

data-placement?string

The placement of the resizetrigger.

FloatingPanelDragTrigger

<div> data-slot="floating-panel-drag-trigger"

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

AttributeType

data-disabled?string

Present when disabled.

FloatingPanelStageTrigger

<button> data-slot="floating-panel-stage-trigger"

PropType

stage"minimized" | "maximized" | "default"

The stage of the panel.

Type: "minimized" | "maximized" | "default"

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

AttributeType

data-stagestring

The stage of the stagetrigger.

FloatingPanelCloseTrigger

<button> data-slot="floating-panel-close-trigger"

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

FloatingPanelControl

<div>

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

AttributeType

data-disabled?string

Present when disabled.

data-maximized?string

Present when maximized.

data-minimized?string

Present when minimized.

data-stagestring

The stage of the control.

data-staged?string

Present when not in default stage.

FloatingPanelMinimize

<button>

PropType

stage"minimized" | "maximized" | "default"

The stage of the panel.

Type: "minimized" | "maximized" | "default"
Default: minimized

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

AttributeType

data-stagestring

The stage of the stagetrigger.

FloatingPanelMaximize

<button>

PropType

stage"minimized" | "maximized" | "default"

The stage of the panel.

Type: "minimized" | "maximized" | "default"
Default: maximized

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

AttributeType

data-stagestring

The stage of the stagetrigger.

FloatingPanelRestore

<button>

PropType

clickEffect?boolean

Apply a click effect to the button.

Default: true

isLoading?boolean

Show a loading indicator.

Default: false

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

AttributeType

data-stagestring

The stage of the stagetrigger.

FloatingPanelFooter

<div> data-slot="floating-panel-footer"

PropType

asChild?boolean

Use the provided child element as the default rendered element, combining their props and behavior.

className?string

Merged with the part's classes.

CSS variableType

--spacestring

useFloatingPanel

PropType

open?boolean

The controlled open state of the panel.

defaultOpen?boolean

The initial open state of the panel when rendered. Use when you don't need to control the open state of the panel.

Default: false

onOpenChange?(details: OpenChangeDetails) → void

Function called when the panel is opened or closed.

Type: (details: OpenChangeDetails) → void
Parameters: details – { open: boolean }
Returns: void

position?object

The controlled position of the panel.

Type: { x: number; y: number }

defaultPosition?object

The initial position of the panel when rendered. Use when you don't need to control the position of the panel.

Type: { x: number; y: number }

onPositionChange?(details: PositionChangeDetails) → void

Function called when the position of the panel changes via dragging.

Type: (details: PositionChangeDetails) → void
Parameters: details – { position: Point }
Returns: void

size?object

The size of the panel.

Type: { width: number; height: number }

defaultSize?object

The default size of the panel.

Type: { width: number; height: number }

onSizeChange?(details: SizeChangeDetails) → void

Function called when the size of the panel changes via resizing.

Type: (details: SizeChangeDetails) → void
Parameters: details – { size: Size }
Returns: void

allowOverflow?boolean

Whether the panel should be strictly contained within the boundary when dragging.

Default: true

closeOnEscape?boolean

Whether the panel should close when the escape key is pressed.

dir?"ltr" | "rtl"

The document's text/writing direction.

Type: "ltr" | "rtl"
Default: "ltr"

disabled?boolean

Whether the panel is disabled.

draggable?boolean

Whether the panel is draggable.

Default: true

finalFocusEl?() → HTMLElement | null

Element to receive focus when the panel is closed. By default, the trigger element is focused.

Type: () → HTMLElement | null
Returns: HTMLElement | null

getAnchorPosition?(details: AnchorPositionDetails) → Point

Function that returns the initial position of the panel when it is opened. If provided, will be used instead of the default position.

Type: (details: AnchorPositionDetails) → Point
Parameters: details – { triggerRect: DOMRect | null; boundaryRect: DOMRect | null }
Returns: Point

getBoundaryEl?() → HTMLElement | null

The boundary of the panel. Useful for recalculating the boundary rect when the it is resized.

Type: () → HTMLElement | null
Returns: HTMLElement | null

gridSize?number

The snap grid for the panel.

Default: 1

id?string

The unique identifier of the machine.

ids?object

The ids of the elements in the floating panel. Useful for composition.

Type: { trigger?: string; positioner?: string; content?: string; title?: string; header?: string }

initialFocusEl?() → HTMLElement | null | false

Element to receive focus when the panel is opened. Defaults to the panel content. Return false to skip moving focus, or null to use the default.

Type: () → HTMLElement | null | false
Returns: HTMLElement | null | false

lockAspectRatio?boolean

Whether the panel is locked to its aspect ratio.

maxSize?object

The maximum size of the panel.

Type: { width: number; height: number }

minSize?object

The minimum size of the panel.

Type: { width: number; height: number }

onPositionChangeEnd?(details: PositionChangeDetails) → void

Function called when the position of the panel changes via dragging ends.

Type: (details: PositionChangeDetails) → void
Parameters: details – { position: Point }
Returns: void

onSizeChangeEnd?(details: SizeChangeDetails) → void

Function called when the size of the panel changes via resizing ends.

Type: (details: SizeChangeDetails) → void
Parameters: details – { size: Size }
Returns: void

onStageChange?(details: StageChangeDetails) → void

Function called when the stage of the panel changes.

Type: (details: StageChangeDetails) → void
Parameters: details – { stage: Stage }
Returns: void

persistRect?boolean

Whether the panel size and position should be preserved when it is closed.

resizable?boolean

Whether the panel is resizable.

Default: true

restoreFocus?boolean

Whether to restore focus to the trigger when the panel is closed.

Default: true

strategy?"absolute" | "fixed"

The strategy to use for positioning.

Type: "absolute" | "fixed"
Default: "fixed"

translations?object

The translations for the floating panel.

Type: { minimize?: string; maximize?: string; restore?: string }

With other components

Button
Buttons
Drag handle or close
Resizable
Layout
Resize the window
Card
Layout
The panel body
Scroll Area
Layout
A long body
Separator
Layout
Split the panel
Tooltip
Overlays
Name a panel action

Sheet
Overlays
Pinned to an edge
Drawer
Overlays
Swipe to dismiss
Popover
Overlays
A small layer
Sidebar
Navigation
Stays in the layout
Frame
Layout
A box that does not float
Dialog
Overlays
Blocks the page

All 105 components

Installation

Anatomy

Usage

Accessibility

Demos

Controlled Position

Controlled Size

Custom Spacing

FAQ

How do I control a Floating Panel's position in React?

How do I control the size of a Floating Panel?

How do I open a Floating Panel from state in React?

How do I minimize or maximize a Floating Panel?

Does Escape close a Floating Panel?

How do I change the spacing inside a Floating Panel?

When should I use a Floating Panel instead of a Dialog?

How do I install Floating Panel in React?

API Reference

FloatingPanel

FloatingPanelTrigger

FloatingPanelPositioner

FloatingPanelContent

FloatingPanelHeader

FloatingPanelBody

FloatingPanelTitle

FloatingPanelResizeTrigger

FloatingPanelDragTrigger

FloatingPanelStageTrigger

FloatingPanelCloseTrigger

FloatingPanelControl

FloatingPanelMinimize

FloatingPanelMaximize

FloatingPanelRestore

FloatingPanelFooter

useFloatingPanel

With other components

Related
